CONSOLE

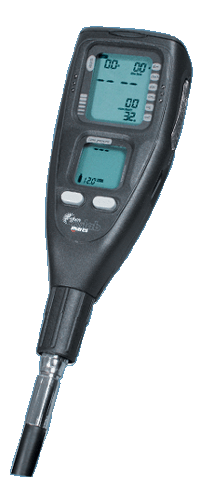

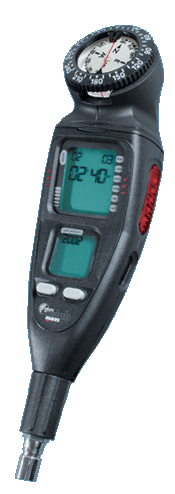

Airlab

The Airlab is diving's most completely integrated computer, and the only one with highly legible illuminated alarms and a calculation of air consumption. It features the brand new Mares-Wienke RGBM Algorithm, the first dive computer to introduce Deep Stops to make your dives safer. Extremely sophisticated yet simple to use, all the functions are accessible using two patented push-buttons. Airlab is powered by two standard 1.5 volt AAA alkaline batteries, which can be easily obtained anywhere in the world, and replaced by the user. The two backlit displays are clear and legible, even in poor visibility.

     Traditional dive functions

• Current depth / maximum depth achieved (using push-buttons)
• Dive time
• Safety stop
• Remaining no-decompression time at the current depth (no dec)
• Decompression stop times
• Total time to surface
• Water temperature
• Speed of ascent (as a percentage of the maximum permitted speed)
• CNS LIMIT for O2 exposure (in the case of Nitrox dives)

     HP dive data

• Tank pressure
• Air consumption in liters per minute
• Air time remaining at the current depth

     Surface functions

• Surface time
• Log book for storing 50 dives in memory
• Profiles of the last 50 dives, at 20-sec. intervals
• Desaturation time display (desat)
• Time-to-fly display (no fly)
• Calendar and clock function
• Air temperature
• Self-diagnosis
• Scrolling of no-stop times for planning repetitive dives
• Dive simulator
• Dive planner

     Alarms

• No-decompression limit reached
• Excessively rapid ascent
• Omitted decompression stop
• Low battery
• Maximum allowed depth as a function of PPO2 (for Nitrox dives)
• Suggested CNS O2 limit reached (for Nitrox dives)
• Illuminated alarm signaling tank pressure at 100 bar.
• Illuminated and audible alarm signaling minimum tank pressure (default 50 bar)

    Main special functions

• Setting of Air/Nitrox programs
• O2 percentage setting from 21% to 50% for Nitrox dives
• Max PPO2 setting from 1.2 - 1.6 bar for Nitrox dives
• Tank capacity setting
• Option to personalize the minimum pressure permitted by the tank (default 50 bar/725 psi)
• History of total dive hours
• History of the deepest dive logged, the lowest temperature measured underwater, and the total hours of diving
• Display backlight, timed or permanently illuminated (using push-button controls)
• No loss of memory during battery change

     Technical characteristics


• RGBM Mares-Wienke algorithm
• Powered by two 1.5 volt AAA batteries
• Quartz calendar clock
• Maximum operating depth: 150 m / 500 feet
• Maximum depth of first decompression stop: 24 m / 80 feet
• Operating temperature: from -10 to +50°C (14/122 °F)
• Storage temperature: from -20 to +70°C (-4/+158 °F)


WRIST

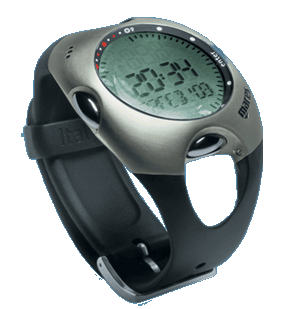

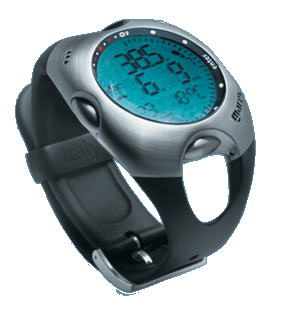

Nemo

Swiss-made case and mechanical components offer maximum reliability and functional precision.

The RGBM Mares-Wienke Algorithm, to reduce risks associated with the formation of micro-bubbles.

The inclusion of Deep Stops (decompression stops at greater depths) and an ascent rate readout, both analog and digital, make dives as safe as possible.

Extremely simple and intuitive. Features easy access to all functions, both as a watch and as a dive computer.

The only one with four dive modes: Air, Nitrox, Bottom Time, and Free-Dive (the special freediving function), to satisfy the most demanding divers.

The watch menu includes:

• Precise and convenient stopwatch with option for partial times.
• A second time setting, ideal for those who travel frequently.

Stainless

Mechanical characteristics

Stainless steel Version

• AISI 316L stainless steel case

Titanium Version

• Titanium case
• Scratch-resistant mineral glass
• Steel buttons
• Hypoallergenic rubber strap
• Strap extension for use with dry suits

PC Interface (optional)

• IRIS. Optical via infrared, with RS232 serial adaptor

A cutting-edge dive computer and an elegant watch.

The best there is, in both your worlds.

Nemo is the most complete dive computer-watch in the world, offering all functions for dives with or without decompression. It can also be used for Nitrox mixtures.

For freediving enthusiasts, it also offers the special "free-dive" mode, specially designed to meet the needs of the most demanding deep divers.

THE DIVE COMPUTER - SCUBA

Traditional dive functions

• Current depth / maximum depth achieved (on request)
• Dive time
• Safety stop
• Remaining no-decompression time at the current depth (no dec)
• Decompression stop times
• Total time to surface
• Water temperature
• Ascent rate in m/min. (ft./min.) with digital readout
• Ascent rate (as a percentage of the maximum permitted speed)
• Value for CNS O2 LIMIT % (in the case of Nitrox dives)
• Dive time in minutes and seconds (in bottom time mode)

Surface functions

• Surface time
• Log book for storing 50 dives in memory
• Profiles of the last 50 dives, at 20-second intervals (max. 38 hours)
• Desaturation time display (desat)
• Time-to-fly display (no fly)
• Calendar and clock function
• Air temperature
• Self-diagnosis
• Scrolling of no-stop times for planning repetitive dives

Alarms

• No-decompression limit reached
• Excessively rapid ascent
• Omitted decompression stop
• Low battery
• Max permitted depth for the programmed PPO2 value (for Nitrox dives)
• "Deep Stop" depth achieved

Main special functions

• Setting of Air/Nitrox/Bottom time programs
• Setting of percentage O2 from 21% to 50%, in increments of 1%
• Setting of PPO2 max from 1.2 to 1.6 bar
• Four-level altitude function
• Option for more conservative programs to increase safety margins
• History of the total number of dives, the deepest dive logged, the lowest temperature measured underwater, and the total hours of diving
• Timer-controlled display lighting
• No loss of memory during battery change
• Function for clearing residual nitrogen memory
• Function for disabling audible alarms
• Fresh water / seawater setting (default fresh)
• Temperature display: Celsius (°C)/Fahrenheit (°F).

Technical characteristics

• Mares-Wienke RGBM Algorithm with Deep Stops
• Powered by a CR 2430 lithium 3V battery
• Quartz calendar clock
• Maximum operating depth: 150m/495 feet
• Operating temperature: from -10 to +50°C (14/122 °F)
• Storage temperature: from -20 to +70°C (-4/+158 °F)

THE DIVE COMPUTER - FREE DIVE

• During the dive
• Current depth
• Duration of the dive
• Water temperature
• Dive time in minutes and seconds

On the surface

• Surface time
• Water temperature
• Maximum depth reached during the
• previous dive
• Total number of dives
• Dive time of the previous dive in minutes and seconds
• Main watch (upon request)

Alarms (can be deactivated, individually if desired)

• Max depth set
• Max dive time set
• Max surface time set
• Depth intervals set

Main special functions

• History of the total number of dives, the deepest dive logged, the lowest temperature measured underwater, and the total hours of diving
• Timer-controlled display lighting
• No loss of memory during battery change
• Fresh water / seawater setting (default fresh)
• Logbook facility for storing 102 dive minutes in memory
• Dive data organized by sessions
• Dive profiles at 4-seconds intervals (max. 102 minutes)

THE WATCH

• Quartz calendar clock
• Second time setting
• Precision stopwatch with option for partial times
• Outside temperature
• Alarm clock
• Time signal (programmable)
• Timer-controlled display lighting

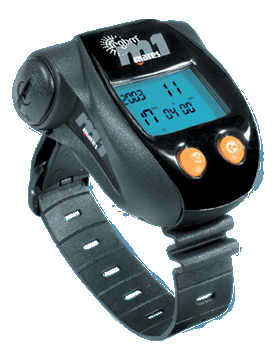

M1 RGBM

The M1 RGBM is the most complete and easy-to-use dive computer on the market, both for recreational and technical diving. Thanks to the brand new Mares-Wienke RGBM Algorithm, the first to introduce Deep Stops, it noticeably improves dive safety margins.

A sleek and distinctive look, controlled by just two patented mechanical buttons.

Powered by two 1.5 Volt AAA batteries, available everywhere.

Traditional dive functions

• Current depth / maximum depth achieved (on request)
• Dive time
• Safety stop
• Remaining no-decompression time at the current depth (no dec)
• Decompression stop times
• Total time to surface
• Water temperature (on request)
• Speed of ascent (as a percentage of the maximum permitted speed)
• Value for CNS O2 LIMIT % (in the case of Nitrox dives)
• Dive time in minutes and seconds (in bottom time mode)

Surface functions

• Surface time
• Log book for storing 50 dives in memory
• Profiles of the last 50 dives, at 20-sec. intervals (max 38 hours)
• Desaturation time display (desat)
• Time-to-fly display (no fly)
• Calendar and clock function
• Air temperature
• Self-diagnosis
• Scrolling of no-stop times for planning repetitive dives
• Dive simulator

Alarms

• No-decompression limit reached
• Excessively rapid ascent
• Omitted decompression stop
• Low battery
• Max permitted depth for the programmed PPO2 value (for Nitrox dives)

Main special functions

• Setting of Air/Nitrox/Bottom time programs
• Setting of percentage O2 from 21% to 50%, in increments of 1%
• Setting of PPO2 max from 1.2 to 1.6 bar
• History of the total number of dives, the deepest dive logged, the lowest temperature measured underwater, and the total hours of diving
• ]Display backlight, timed or permanently illuminated (using push-button controls)
• No loss of memory during battery change
• Function for clearing residual nitrogen memory
• Function for disabling audible alarms
• Fresh water / seawater setting (default fresh)

Technical Characteristics

• Mares-Wienke RGBM Algorithm with Deep Stops
• Powered by two 1,5 volts AAA batteries
• Quartz calendar clock
• Maximum operating depth: 150m/495 feet
• Maximum depth of first decompression stop: 24m/80 feet
• Operating temperature from -10 to +50°C (14/122 °F)
• Storage temperature : from -20 to +70°C (-4/+158 °F)

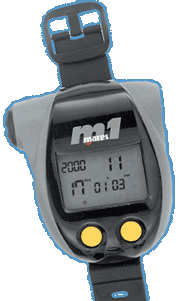

M1

The same characteristics as the M1 RGBM dive computer, with 11-tissue exponential deterministic algorithm, with M values (low bubble) derived from studies by Rogers and Powell (modified Haldane).
